Landmarks

Frontal landmarks

SPIGA places 98 landmarks on a frontal face, in the layout of the WFLW dataset (Wu et al., 2018). Every frontal measure is calculated from them.

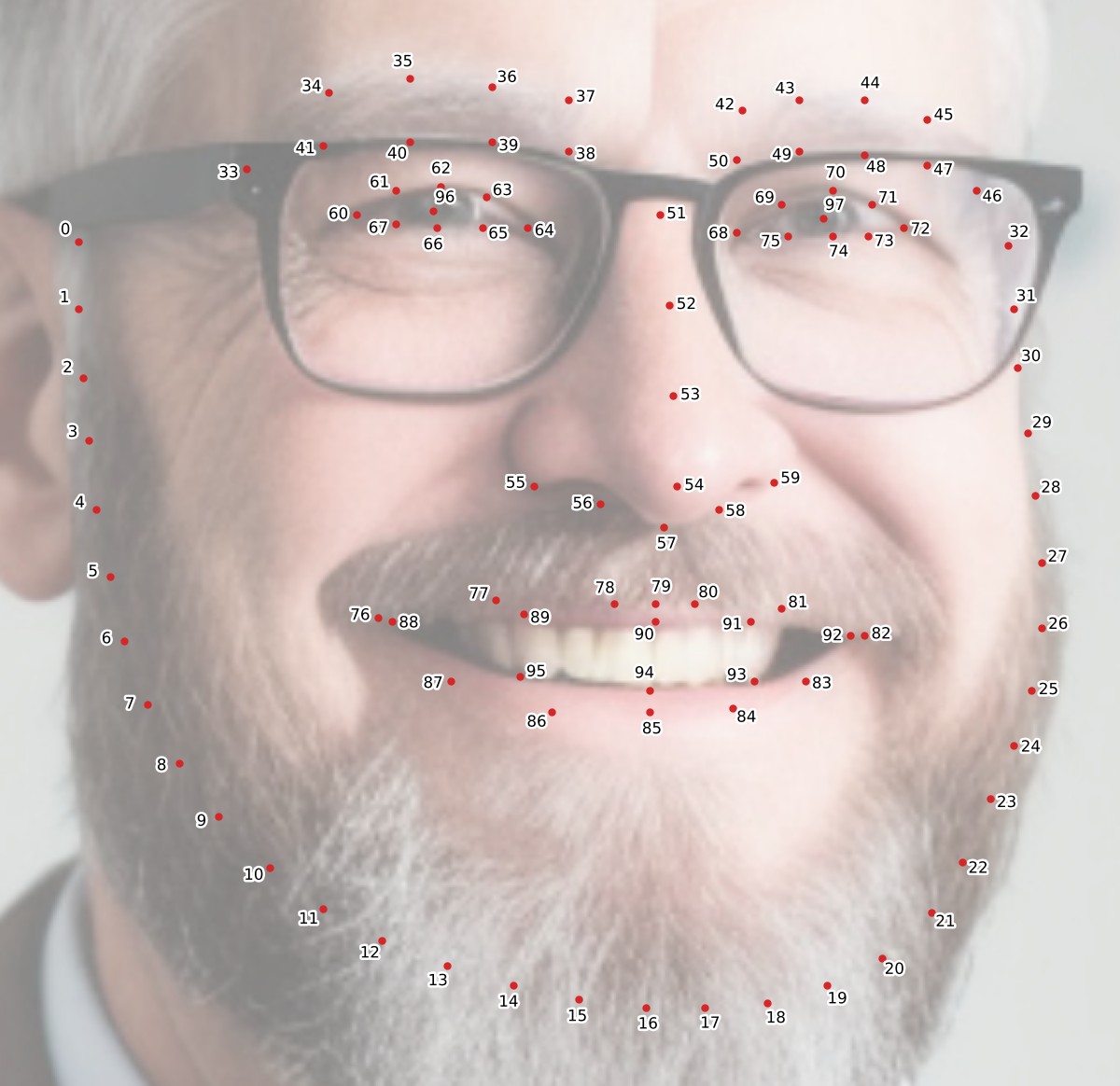

The 98 frontal landmarks, each with its number
Select the figure to open it at full size.
Landmarks Where
0–32 Outline of the face, from the subject's right side, around the chin, to the left side
33–41 Subject's right brow: 33–37 along the top, starting at the outer end, and 38–41 along the bottom
42–50 Subject's left brow: 42–46 along the top, starting at the inner end, and 47–50 along the bottom
51–54 Bridge of the nose, from top to bottom
55–59 Base of the nose, from the subject's right to left
60–67 Subject's right eye: 60 is the outer corner and 64 the inner corner
68–75 Subject's left eye: 68 is the inner corner and 72 the outer corner
76–87 Outer edge of the lips: 76 and 82 are the corners, and 85 the middle of the lower lip
88–95 Inner edge of the lips: 88 and 92 are the corners
96, 97 The subject's right and left pupils

In code, face.landmarks holds the 98 points as (x, y) pixels in the standard image, numbered from 0 as in the figure:

x, y = face.landmarks[64]  # the inner corner of the subject's right eye

The Landmarks measure returns the same points numbered from 1, as landmark-1-x to landmark-98-y. face.draw_landmarks() draws them on the image; pass only=[64, 68] to draw just those.

Profile landmarks

For a profile, U²-Net removes the background, and Dynaface traces the outline of the face from forehead to chin and finds six points on it:

Landmark Definition
0 Soft tissue glabella The most prominent midline point on the forehead, above the nasion
1 Soft tissue nasion The deepest midline point between the forehead and the bridge of the nose
2 Nasal tip The most forward point of the nose
3 Subnasal point Where the base of the nose meets the upper lip
4 Mentolabial point The deepest point between the lower lip and the chin
5 Soft tissue pogonion The most forward point of the chin
The six profile landmarks on a sample profile
The traced outline, on the right, with the six points marked.

face.lateral_landmarks holds the six points in this order, as (x, y) pixels in the profile image. A point Dynaface couldn't find has a y of −1, and the measures that use it are NaN. face.sagittal_x and face.sagittal_y hold the traced outline itself, one point for each row of the image that it crosses.
